The
Palisades High Security Fence is a rugged,
dependable, attractive perimeter security
fence that provides an economical solution
whenever privacy, property, or personal
safety are at risk.
Safeguards Technology has developed a system of fencing and gate components that meet the
most demanding requirements of site specifications and security. A proven configuration of
premium grade, hot rolled steel pales are available in galvanized or stainless steel material.
Installation is easy. Bolted assemblies with tamper-resistant connection points throughout
produce a rigid barrier of strong integrity along the full fence.

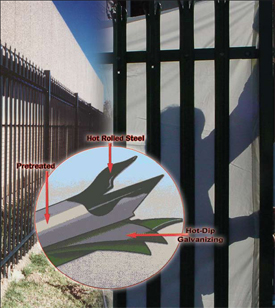

The pointed steel pales serve as a
formidable obstacle. The steel pales defeat attempts at
climbing, straddling, grabbing or gaining a foot hold.
Longevity:
The Palisades Fence provides exceptional
resistance to harsh atmospheric conditions and has an
expected lifetime in excess of 25 years.
Customizable:
The height and configuration of the
Palisades can be custom made to the client’s needs.
Application
Palisades High Security Fence is the optimal fence
solution for high security sites where attractive high
strength security fencing is required.
Specifications
Pales – Construction and Specifications
Secured to the rails at every intersection by bolting
with special, classic steel anti-vandal shear bolts
Square shaped holes to accommodate the
anti-vandal shear nuts so that head does not
protrude more than 0.2” (5mm). Also provides
counter force to opening and tightening of nut.
Head of pale triple pointed and splayed to afford
greatest deterrent
Hot rolled corrugated pales: 0.12” thick x 2.6”
wide x 0.88” deep (from commercial quality hot
rolled sheets pickled and diled suitable for galvanizing)
Minimum deflection at 2.5kn applied load:
0.4” for a sample 24” long
Posts – Construction and Specifications
Standard section provided at 9.85’ center,
pointed at the top
For non-standard designs that have different
centers, the fence can be custom designed to the
site requirements
Posts are embedded in concrete foundation.
Depth to be determined by soil characteristics.
Main Post Dimensions:
Length of point: 4.8”; Length of splay: 3.6” ; Set of
splay: 1.6”
Safeguards Technology, LLC
75 ATLANTIC STREET
HACKENSACK, NJ 07601
